Industrial Sealing Systems & High-Performance Bushing Technology
Engineered Solutions for Extreme Industrial Environments
SeSi Innovations specializes in the rapid manufacturing of high-precision, custom PEEK and PTFE components. Our sealing systems are designed to maximize equipment uptime in the most demanding oil, mining, paper, and power industry applications.
How Way-2-Seal Solves Your Sealing Problems
The Way-2-Seal product line is engineered to address the most common and costly challenges in industrial sealing. Whether you are managing abrasive slurries or high-temperature environments, our technology provides several key advantages:
Reduces Friction and Wear: Specialized design features provide cooling benefits that significantly decrease friction and mechanical wear on your equipment.
Slurry Pump Optimized: Way-2-Seal is an excellent solution for demanding slurry pump applications.
Simple Installation: Our bushings are designed for extremely simple installation to minimize your downtime.
High-Temperature Performance: These components are built to withstand extreme operating temperatures ranging from 260∘C up to 400∘C depending on the material.
Abrasive Media Resistance: The materials used are highly resistant to even the most abrasive media, extending the life of your seal.
Energy Efficiency: By greatly reducing friction, Way-2-Seal also lowers the amperage draw of your machinery.
Operational Versatility: In non-abrasive environments, the system can be run flush for maximum efficiency.

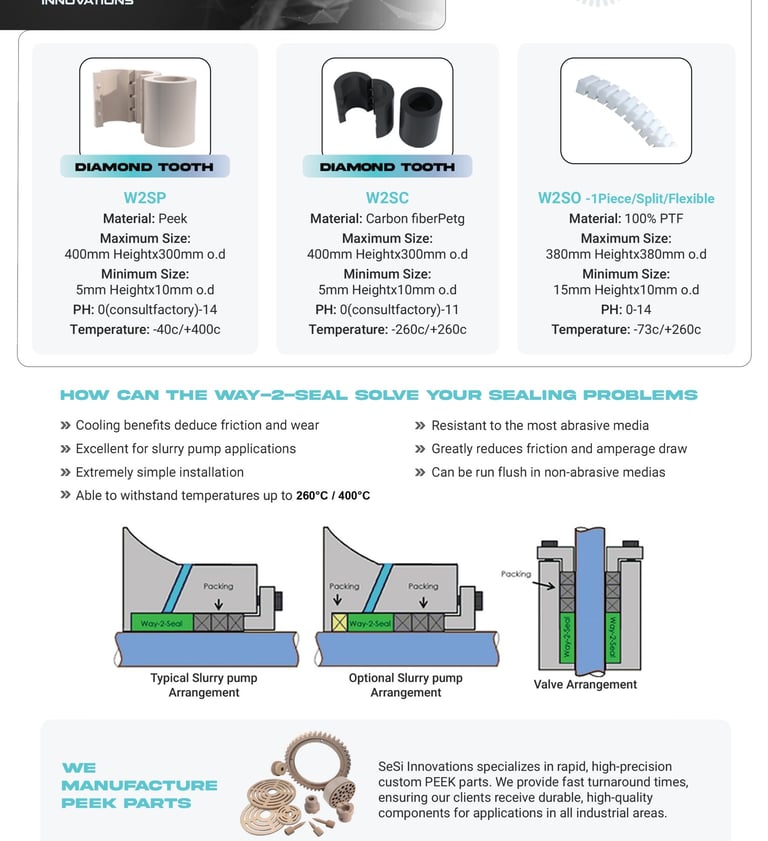

Products
We offer three core grades of bushing technology tailored to specific thermal and chemical requirements:

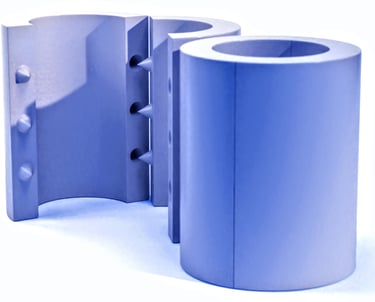

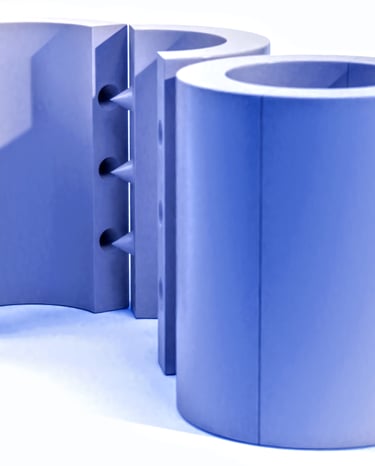

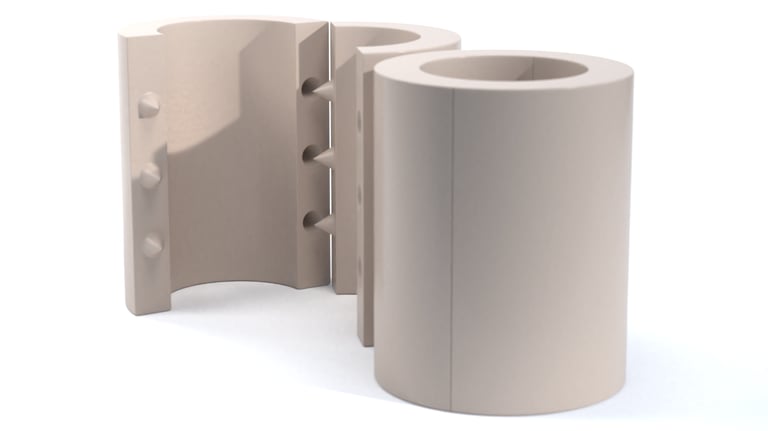

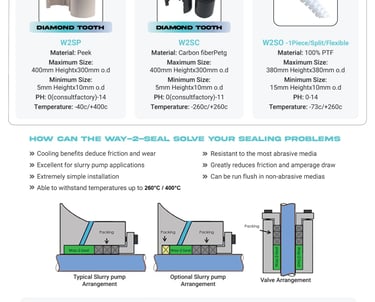

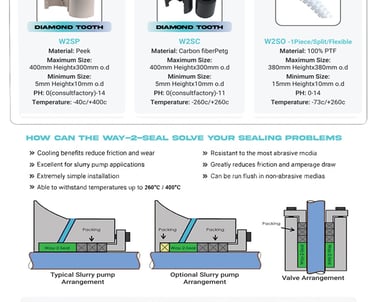

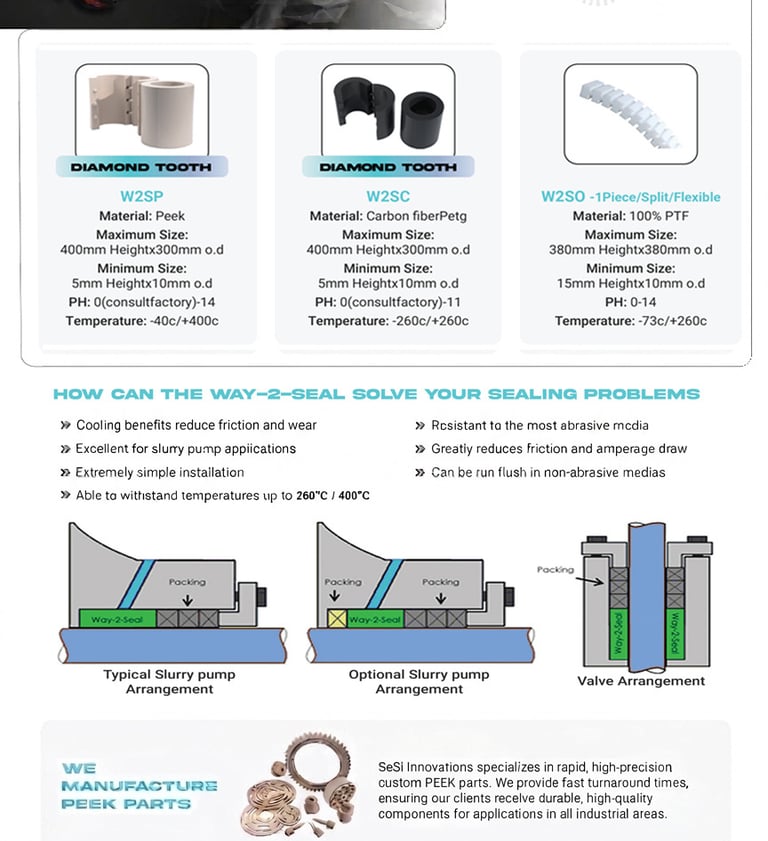

W2SP Diamond Tooth Bushing
Material: Peek
Design: Diamond Tooth
Operating Temperature: -40C to +400C
pH Resistance: 0 (consult factory) to 14
Maximum Size: 400mm Height x 300mm o.d.
Minimum Size: 5mm Height x 10mm o.d.

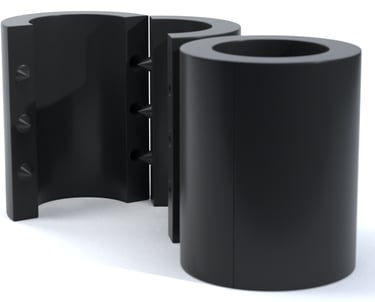

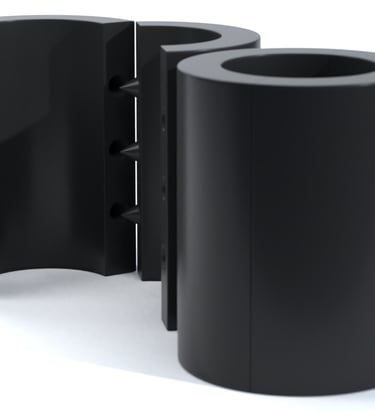

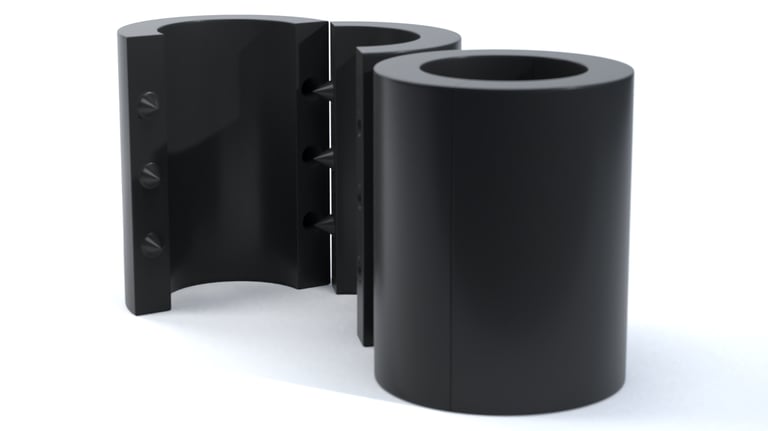

W2SC Diamond Tooth Bushing
Material: Carbon fiber Petg
Design: Diamond Tooth
Operating Temperature: -260C to +260C
pH Resistance: 0 (consult factory) to 11
Maximum Size: 400mm Height x 300mm o.d.
Minimum Size: 5mm Height x 10mm o.d.

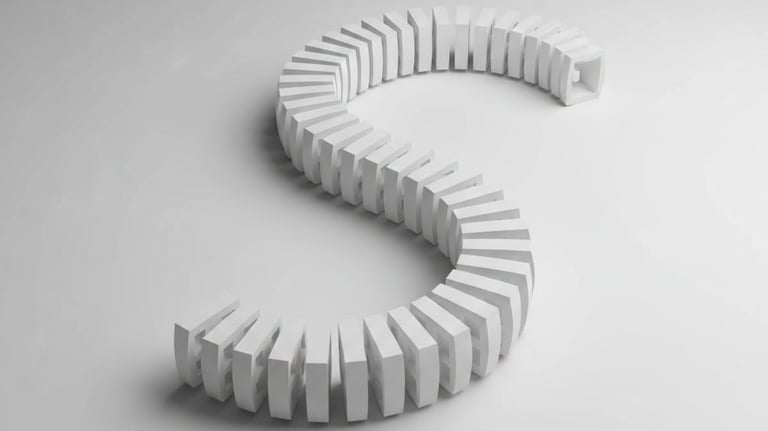

W2SO Flexible Bushing
Material: 100% PTF
Design: 1-Piece / Split / Flexible
Operating Temperature: -73C to +260C
pH Resistance: 0 to 14
Maximum Size: 380mm Height x 380mm o.d.
Minimum Size: 15mm Height x 10mm o.d.
Field Tests & Performance
Real-World Durability: Watch our Way-2-Seal bushings endure the high-friction, high-heat conditions of slurry pumps and oil field operations.
The "Diamond Tooth" Advantage: Visual proof of how our inner-diameter geometry facilitates cooling and manages abrasive media better than traditional smooth-bore seals.
Slurry Management: Field footage showing how our seals handle thick, abrasive fluids that would typically cause premature failure in standard packing or mechanical seals.
